Home Assistant

Demonstration

This is just a simple demonstration on one possible way to get the Sunspec data from your solar inverter into Home Assistant.

Highlevel structure of this demo script:

Kotlin script that
- fetches the data (using the SunSpec/Modbus Schema Toolkit) from SunSpec device
- pushes the data into MQTT as JSon
MQTT Broker
- Intermediate component
Home Assistant gets sensor data via MQTT
- HA config proposal is generated by the script for all provided fields

Tip

This demo has full support for all Models, Groups and Points and all repeating patterns in those as specified by SunSpec. Not just a subset, not just the common ones, … all of them.

Needed

To run this you’ll need:

The ability to run a Kotlin Script
- Java 17 (or newer)
  - For my PI3 I got Zulu 17 from the Azul download site.
- Kotlin commandline compiler
  - https://kotlinlang.org/docs/command-line.html
A running MQTT broker
- I used Mosquitto for my tests
A Home Assistant instance …
- Obviously
- Configuration is generated by the script for you

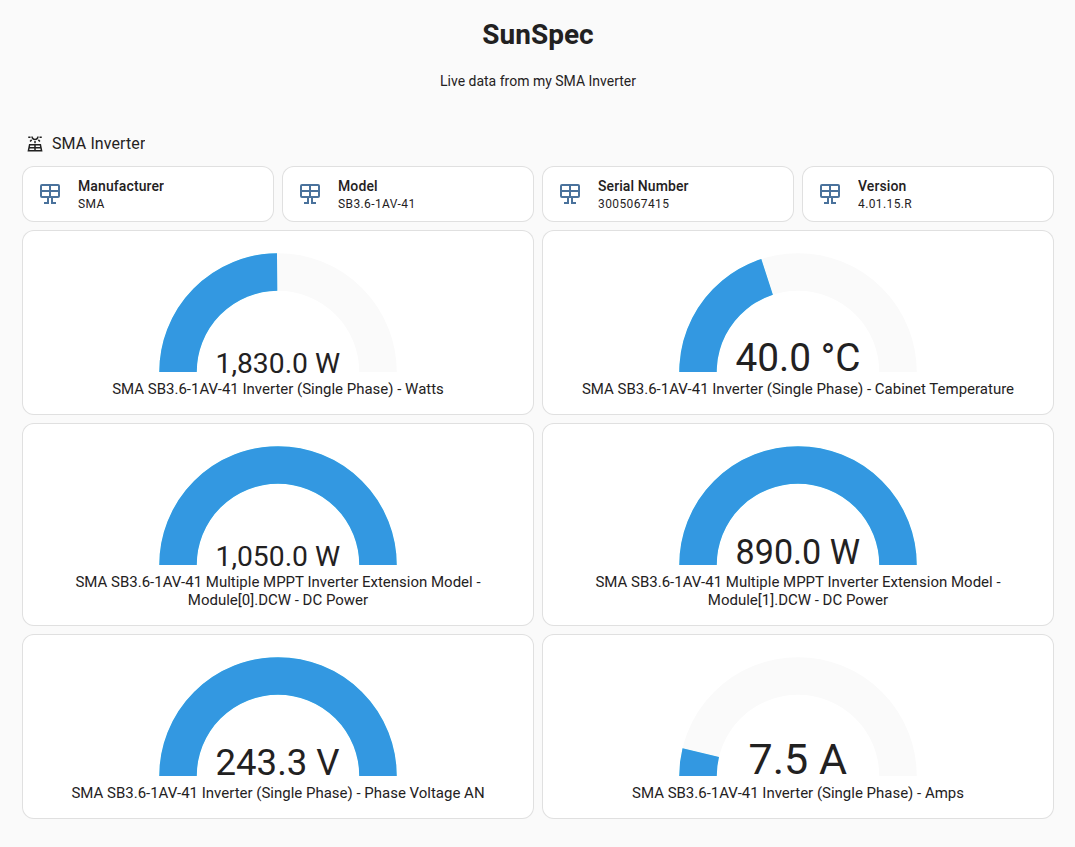

The result

Note

This is all fully generated from the SunSpec specification, the fields I asked for and the capabilities of the actual device.

SunSpec in Home Assistant

Relevant points

This is just a demo …
- Which happens to work pretty well.
You can rename the script but it MUST end with .main.kts.
- So Something.main.kts works and Something.kts does not work.
At startup your device and the requested fields is used to get all the needed information about the fields that are actually available.
- The script then outputs a Home Assistant configuration YAML to the console for easier configuration for those fields.

Warning

My SMA inverter goes into a different mode after dark and then many fields no longer return a value (i.e. field not available). So this version of this script does not give the same set of fields when compared to day time. You can change that if you want.

Most Modbus/SunSpec devices are very SLOW.
- Be conservative in the number of Fields you want to retrieve. Or reduce the refresh rate (to like once every 5 seconds).
  - This line timer.scheduleAtFixedRate(timerTask, 0L, 1000L) the 1000L is 1 second
The available fields per device differ
- I recommend using the showAllFieldsWithUsableValues(sunSpec) function to determine what your device CAN provide and then only ask for what it actually has.
There are a few settings you need to do.
- The name of the device is needed because otherwise Home Assistent will show localhost everywhere.
  - A default name is determined from your specific device. You can overrule this using homeAssistantDeviceName

The config produced

The generated config looks something

#!/usr/bin/env kotlin

@file:DependsOn("org.jetbrains.kotlin:kotlin-stdlib:2.1.21")
@file:DependsOn("nl.basjes.sunspec:sunspec-device:0.5.0")
@file:DependsOn("nl.basjes.modbus:modbus-api-j2mod:0.7.0")
@file:DependsOn("org.json:json:20250517")
@file:DependsOn("de.kempmobil.ktor.mqtt:mqtt-core-jvm:0.6.1")
@file:DependsOn("de.kempmobil.ktor.mqtt:mqtt-client-jvm:0.6.1")
@file:DependsOn("org.apache.logging.log4j:log4j-to-slf4j:2.24.3")
@file:DependsOn("org.slf4j:slf4j-simple:2.0.17")

import com.ghgande.j2mod.modbus.facade.ModbusTCPMaster
import nl.basjes.modbus.device.api.MODBUS_STANDARD_TCP_PORT
import de.kempmobil.ktor.mqtt.MqttClient
import de.kempmobil.ktor.mqtt.PublishRequest
import de.kempmobil.ktor.mqtt.QoS
import de.kempmobil.ktor.mqtt.TimeoutException
import kotlinx.coroutines.DelicateCoroutinesApi
import kotlinx.coroutines.GlobalScope
import kotlinx.coroutines.delay
import kotlinx.coroutines.launch
import kotlinx.coroutines.runBlocking
import kotlinx.io.IOException
import nl.basjes.modbus.device.exception.ModbusException
import nl.basjes.modbus.device.j2mod.ModbusDeviceJ2Mod
import nl.basjes.modbus.schema.Field
import nl.basjes.modbus.schema.ReturnType.BOOLEAN
import nl.basjes.modbus.schema.ReturnType.DOUBLE
import nl.basjes.modbus.schema.ReturnType.LONG
import nl.basjes.modbus.schema.ReturnType.STRING
import nl.basjes.modbus.schema.ReturnType.STRINGLIST
import nl.basjes.modbus.schema.ReturnType.UNKNOWN
import nl.basjes.modbus.schema.SchemaDevice
import nl.basjes.modbus.schema.get
import nl.basjes.modbus.schema.toTable

import nl.basjes.sunspec.device.SunspecDevice
import org.json.JSONObject
import java.time.Instant
import kotlin.system.exitProcess
import kotlin.time.Duration.Companion.hours

val modbusHost             :String = "sunspec.iot.basjes.nl"
val modbusPort           :Int    = 502 // The default MODBUS TCP port
val modbusUnit           :Int    = 126 // SMA uses 126, other vendors can differ

val mqttBrokerHost       :String? = "localhost"
val mqttBrokerPort       :Int     = 1883
val mqttTopic            :String? = "energy/solar"

//val mqttUser            :String? = null TODO: If you need it you must change the code a bit.
//val mqttPassword        :String? = null TODO: If you need it you must change the code a bit.

// This is useful if you want to set a different hostname (shown in the HA Gauge label and such)
val homeAssistantDeviceName: String? = null

fun allTheFieldsIWant(device: SchemaDevice): List<Field> {
    // Use these fields as Measurements
    val allFields = mutableListOf<Field>()

    // Brute force want all fields
//    device
//        .fields
//        .filter { !it.isSystem }
//        .forEach { allFields.add(it) }


    // Or a smarter more efficient selection
    allFields.add(device.wantField("Model 1", "Mn"              ))
    allFields.add(device.wantField("Model 1", "Md"              ))
    allFields.add(device.wantField("Model 1", "Vr"              ))
    allFields.add(device.wantField("Model 1", "SN"              ))

    allFields.add(device.wantField("Model 101", "A"             ))
    allFields.add(device.wantField("Model 101", "AphA"          ))
    allFields.add(device.wantField("Model 101", "AphB"          ))
    allFields.add(device.wantField("Model 101", "AphC"          ))
    allFields.add(device.wantField("Model 101", "PPVphAB"       ))
    allFields.add(device.wantField("Model 101", "PPVphBC"       ))
    allFields.add(device.wantField("Model 101", "PPVphCA"       ))
    allFields.add(device.wantField("Model 101", "PhVphA"        ))
    allFields.add(device.wantField("Model 101", "PhVphB"        ))
    allFields.add(device.wantField("Model 101", "PhVphC"        ))
    allFields.add(device.wantField("Model 101", "W"             ))
    allFields.add(device.wantField("Model 101", "Hz"            ))
    allFields.add(device.wantField("Model 101", "VA"            ))
    allFields.add(device.wantField("Model 101", "VAr"           ))
    allFields.add(device.wantField("Model 101", "PF"            ))
    allFields.add(device.wantField("Model 101", "WH"            ))
    allFields.add(device.wantField("Model 101", "DCA"           ))
    allFields.add(device.wantField("Model 101", "DCV"           ))
    allFields.add(device.wantField("Model 101", "DCW"           ))
    allFields.add(device.wantField("Model 101", "TmpCab"        ))
    allFields.add(device.wantField("Model 101", "TmpSnk"        ))
    allFields.add(device.wantField("Model 101", "TmpTrns"       ))
    allFields.add(device.wantField("Model 101", "TmpOt"         ))

    allFields.add(device.wantField("Model 160", "Module_0_ID"   ))
    allFields.add(device.wantField("Model 160", "Module_0_DCA"  ))
    allFields.add(device.wantField("Model 160", "Module_0_DCV"  ))
    allFields.add(device.wantField("Model 160", "Module_0_DCW"  ))
    allFields.add(device.wantField("Model 160", "Module_1_ID"   ))
    allFields.add(device.wantField("Model 160", "Module_1_DCA"  ))
    allFields.add(device.wantField("Model 160", "Module_1_DCV"  ))
    allFields.add(device.wantField("Model 160", "Module_1_DCW"  ))
    return allFields
}

// ===================================================================================================


print("Modbus: Connecting...")
val modbusMaster = ModbusTCPMaster(modbusHost, modbusPort)
modbusMaster.connect()
ModbusDeviceJ2Mod(modbusMaster, modbusUnit). use { modbusDevice ->
    println(" done")

    // Connect to the SunSpec device and generate a SchemaDevice with all supported SunSpec Models and Fields.
    val sunSpec = SunspecDevice.generate(modbusDevice) ?: throw ModbusException("Unable to generate SunSpec device")
    sunSpec.connect(modbusDevice, 100)

    // To get information about what your every field your device CAN actually provide: uncomment this next line
//    showAllFieldsWithUsableValues(sunSpec)

    // If no broker is specified the output is sent to the console (useful for testing)
    if (mqttBrokerHost == null || mqttTopic == null) {
        println("No database, outputting to console")
        runLoop(sunSpec, null, "console")
        return
    }

    // If we do have the broker and topic the data is sent to the MQTT broker
    println("Connecting to mqtt $mqttBrokerHost:$mqttBrokerPort")
    // TODO: Username + password ...
    val mqttClient = MqttClient(mqttBrokerHost, mqttBrokerPort) {}
    runBlocking {
        mqttClient.connect().onFailure { throw IOException("Connection failed: $it") }
    }
    runLoop(sunSpec, mqttClient, mqttTopic)
    runBlocking {
        mqttClient.disconnect()
    }
}

fun SchemaDevice.wantField(blockId:String, fieldId:String) =
    this[blockId][fieldId] ?: throw ModbusException("The desired field \"${fieldId}\" in the block \"${blockId}\" does not exist")

@OptIn(DelicateCoroutinesApi::class)
fun runLoop(device: SchemaDevice, mqttClient: MqttClient?, mqttTopic: String) {

    // Use these fields as Measurements
    val allFields = allTheFieldsIWant(device)

    // We need all the field we want.
    allFields.forEach { it.need() }

    println("Trying to get ${allFields.size} fields.")
    device.update()
    println("Found ${allFields.filter{ it.value != null }.size} fields to have a value.")
    println(device.toTable(onlyUseFullFields = true))

    // ----------------------------------------------------------------------------------------

    // OPTIONAL: Generate the config for Home Assistant
    generateHomeAssistantConfig(device, allFields)

    // ----------------------------------------------------------------------------------------

    val interval = 1000L

    println("Starting read loop")

    while (true) {
        try {
            runBlocking {
                // Wait until the current time is a multiple of the configured interval
                val now = Instant.now().toEpochMilli()
                val sleepTime = (((now / interval) + 1) * interval) - now
                if (sleepTime > 0) delay(sleepTime)
            }
            // Update all fields
            val startUpdate = Instant.now()
            print("Doing update at: $startUpdate .. ")
            device.update()
            val finishUpdate = Instant.now()
            println("done in ${finishUpdate.toEpochMilli() -  startUpdate.toEpochMilli()} milliseconds.")

            val result = JSONObject()

            // We are rounding the timestamp to seconds to make the graphs in influxdb work a bit better
            val now = Instant.now()
            result.put("timestamp", now.toEpochMilli())
            result.put("timestampString", now)

            allFields.forEach {
                val jsonFieldName = it.jsonFieldName()
                when(it.returnType) {
                    DOUBLE     -> result.put(jsonFieldName, it.doubleValue     ?: 0.0)
                    LONG       -> result.put(jsonFieldName, it.longValue       ?: 0)
                    STRING     -> result.put(jsonFieldName, it.stringValue     ?: "")
                    STRINGLIST -> result.put(jsonFieldName, it.stringListValue ?: listOf<String>())
                    UNKNOWN    -> TODO()
                    BOOLEAN    -> TODO()
                }
            }

            if (mqttClient == null) {
                println(result)
            } else {
                GlobalScope.launch {
                    print("Writing to MQTT: $now .. ")
                    mqttClient
                        .publish(PublishRequest(mqttTopic) {
                            desiredQoS = QoS.AT_LEAST_ONCE
                            messageExpiryInterval = 12.hours
                            payload(result.toString())
                        })
                        .onSuccess { println("COMPLETED") }
                        .onFailure { println("FAILED with $it") }
                }
            }

        } catch (e: TimeoutException) {
            System.err.println("Got a TimeoutException from MQTT (ignoring 1): $e --> ${e.message} ==> ${e.printStackTrace()}")
        } catch (e: java.util.concurrent.TimeoutException) {
            System.err.println("Got a java.util.concurrent.TimeoutException (ignoring 2): $e --> ${e.message} ==> ${e.printStackTrace()}")
        } catch (e: Exception) {
            System.err.println("Got an exception: $e --> ${e.message} ==> ${e.printStackTrace()}")
            println("Stopping")
            return
        }
    }

    println("Stopping.")
}

fun Field.jsonFieldName() = "${this.block.id} ${this.id}".replace(Regex("[^a-zA-Z0-9_]"), "_")

fun showAllFieldsWithUsableValues(schemaDevice: SchemaDevice) {
    schemaDevice.updateAll()
    println("All possible fields that provide a useful value:\n${schemaDevice.toTable(true)}")
    exitProcess(0)
}

fun generateHomeAssistantConfig(
    device: SchemaDevice,
    allFields: List<Field>,
) {
    // Generate the config for Home Assistant
    // We first fetch all fields that have been asked for
    // and then for all fields that actually have a value and are not marked as "system"
    // a config for Home Assistant is generated (must be copied to the Home Assistant setup manually)

    // These are always needed
    val manufacturer = device.wantField("Model 1", "Mn")
    val model        = device.wantField("Model 1", "Md")
    val version      = device.wantField("Model 1", "Vr")
    val serialNumber = device.wantField("Model 1", "SN")

    val configFields = mutableListOf<Field>()
    configFields.add(manufacturer)
    configFields.add(model)
    configFields.add(version)
    configFields.add(serialNumber)
    configFields.addAll(allFields)
    configFields.distinct()

    configFields.forEach { it.need() }
    device.update(1000)
    configFields.forEach { it.unNeed() }

    println("""
# ----------------------------------------------------------------------------------------
# HomeAssistant definitions for all requested fields
mqtt:
  sensor:
    """.trimIndent())
    allFields
        .forEach {
            if (!it.isSystem && it.value != null) {
                val jsonFieldName = it.jsonFieldName()
                // Building a name that looks 'ok' in Home Assistant
                var name = if (it.block.shortDescription.isNullOrBlank())
                    it.block.id
                else
                    it.block.shortDescription
                name += " - "
                if(it.id.contains("_")) {
                    name += it.id
                        // Make the name of fields in repeating blocks look better
                        .replace(Regex("_([0-9]+)_"), "[$1].")
                        .replace("_", ".")
                    if (!it.id.endsWith(it.shortDescription)) {
                        name += " - ${it.shortDescription}"
                    }
                } else {
                    name += it.shortDescription
                }

                println(
                    """
    - name: "$name"
      unique_id: "SunSpec-${manufacturer.stringValue}-${serialNumber.stringValue}-$jsonFieldName"
      state_topic: "$mqttTopic"
      value_template: "{{ value_json.$jsonFieldName ${if (it.returnType == DOUBLE) "| round(4, default=0)" else "" }}}"${if(it.unit.isNotBlank()) """
      unit_of_measurement: "${it.unit}"""" else ""}
      icon: mdi:solar-panel
      device:
        name: "${if(homeAssistantDeviceName.isNullOrBlank()) "${manufacturer.stringValue} ${model.stringValue}" else homeAssistantDeviceName}"
        manufacturer: "${manufacturer.stringValue}"
        model: "${model.stringValue}"
        identifiers: "${serialNumber.stringValue}"
        sw_version: "${version.stringValue}"
      """
                )
            }
        }
    println("""
# ----------------------------------------------------------------------------------------
""")

//    exitProcess(0)
}
